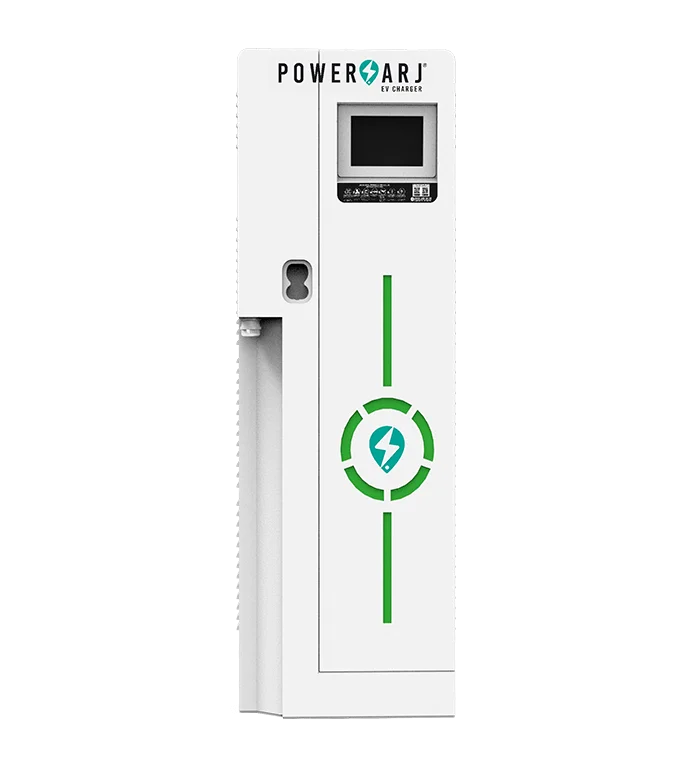

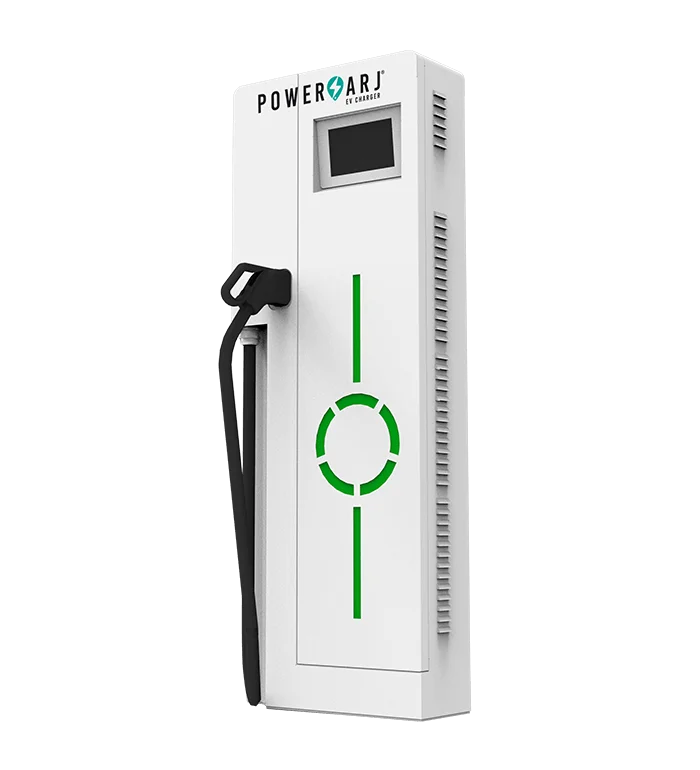

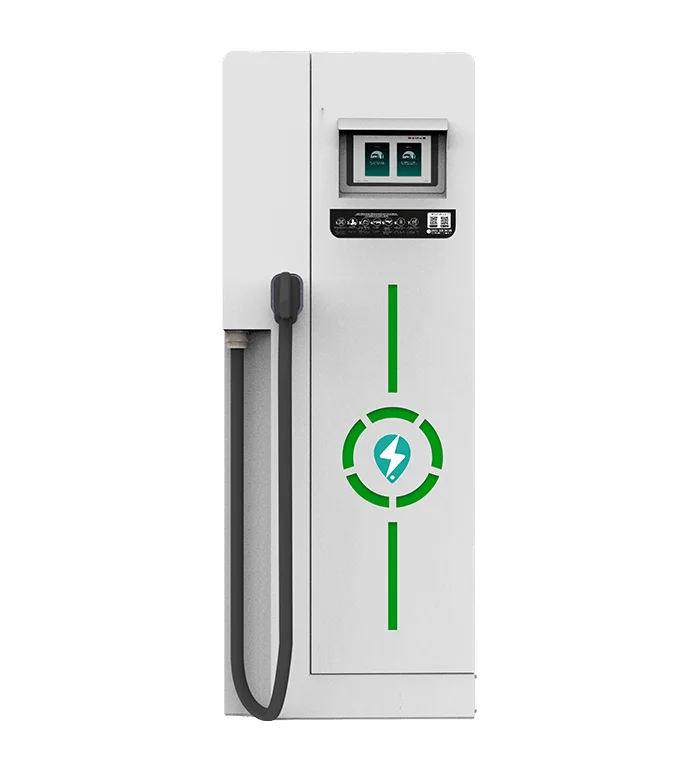

DC Smart L Series Charging Station

Enjoy a high-speed and user-friendly charging experience for your electric vehicles with Powerşarj Smart L Series charging stations. These charging stations stand out with their compact design, customization options and powerful performance. With every detail thought out, this product offers an ideal long-term investment for electric vehicle charging.

Fast Charging with Various Charging Capacities

It offers charging capacities ranging from 60 kW to 120 kW with flexible charging options.

  • Determining the appropriate charging capacity.
  • 20 minutes charging time.
    (Charging time depends on the electric vehicle model and charging conditions).


Maximum Flexibility

Compatible with all charging standards and battery types, the Smart L series offers many benefits that can be customized for you.

  • Credit card payment terminals and cable management systems.
  • Personalized screens and logos.
  •

Future Ready

With up to 1000 VDC output voltage, it is ready to charge the next generation of electric vehicles.
  • Easy power upgrades up to 120 kW.
  • High efficiency and performance.

Smart Charging with OCPP

Through the Open Charge Point Protocol OCPP 1.6.0 and OCPP 2.0.1 versions, it performs intelligent charging management to balance charging demands and reduce infrastructure costs.
  • Adapt to the evolving requirements of electric mobility.
  • Faster, safer and more efficient charging.

Versatile Security

It is compatible with all electric vehicles and provides safe charging for both current and future electric vehicle models.
  • Electrical protection at industrial level.
  • Vehicle and infrastructure safety.
DC Smart L Series

Safety Features

Charge your car safely without any worries! Powerşarj electric vehicle charging stations offer a high level of protection, redefining safety standards.
Icon
High Temperature Protection
Icon
Timer Function
Icon
AC-DC Residual Current Protection
Icon
High Voltage Protection
Icon
Current Adjustment
Icon
Crush Resistant
Icon
Water Resistant Design
Icon
Environmentally Friendly
AC Rapid Series Basic Model

Safety Features

Charge your car safely without any worries! Powerşarj electric vehicle charging stations offer a high level of protection, redefining safety standards.
Icon
High Temperature Protection
Icon
High Temperature Protection
Icon
High Temperature Protection
Icon
AC-DC Residual Current Protection
Icon
High Temperature Protection
Icon
High Temperature Protection
Icon
High Temperature Protection
Icon
AC-DC Residual Current Protection
Technical Specifications
Maximum Power 60 kW - 90 kW - 120 kW according to the product
Maximum Current: 100A*3 PHASE - 150*3 PHASE - 200*3 PHASE according to the product
Voltage Range: 400 Vac + 15% 50/60Hz
Voltage Range: 200- 920 Vdc
Connection Compatibility:
Standard: CCS2
Optional: CHAdeMo - GB/T
Temperature Range: -35°C to +55°C
RFID Reader: 13.56 MHz Mifare (Optional)
LAN Connection: Ethernet
WLAN Connectivity: 802.11ac
Mobile Connectivity: LTE (Optional)

The Powerşarj Difference: More for Electric Vehicles

  • User Friendly Interface
    Our easy-to-use design provides a clutter-free and hassle-free charging experience.
  • All in One Service
    Powerşarj is with you at all stages from sales to installation, optimizing the most suitable solution according to your needs and the needs of your space.
  • Easy Pricing and Usage Tracking
    Stay in control with easy charging and usage tracking features. View your installed charging stations on the map and get customized reports.
  • Mobile Application
    Control your charging station through our user-friendly mobile app and enjoy the flexibility to manage your charging sessions from anywhere.
